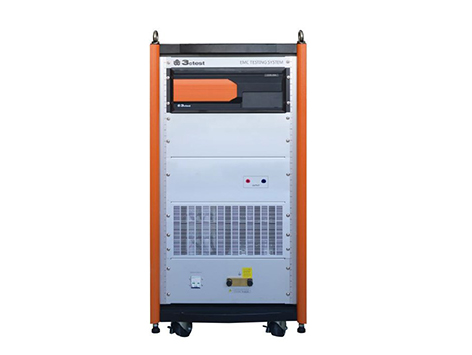

CDS 300 Common Mode Conducted Disturbance Simulator
CDS 300 is a common mode conducted interference simulator with a frequency range of 0Hz (DC) to 165KHz and a maximum voltage of 300V. The generator is controlled by CoreLab software, which can realize various functional tests conveniently and quickly. The instrument complies with IEC/EN 61000-4-16 for continuous mode and short-time mode tests at four frequency points of DC, 162/3 Hz, 50Hz, and 60Hz, and can also perform sweeping from 10Hz to 165kHz with four test levels. frequency mode test. The instrument cooperates with R419-10 and R419-1 resistance modules to realize differential mode voltage and current testing in IEC/EN 61000-4-19 standard. With the CDN network, the test requirements of IEC/EN 60255-26, IEC/EN 60255-22-7 and GB/T 14598.19 can also be achieved.

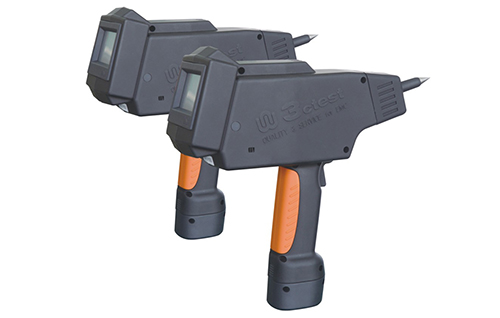

The EDS 16H is a state-of-the-art handheld electrostatic discharge generator. Accurately simulates electrostatic discharge pulse disturbances according to requirements such as EN/IEC 61000-4-2, ergonomically designed, no additional enclosure, and can be powered by battery and power adapter. The LCD touch screen is simple and easy to operate, the RC module can be replaced, and the built-in temperature and humidity meter ensures the reliability of use in various test occasions.

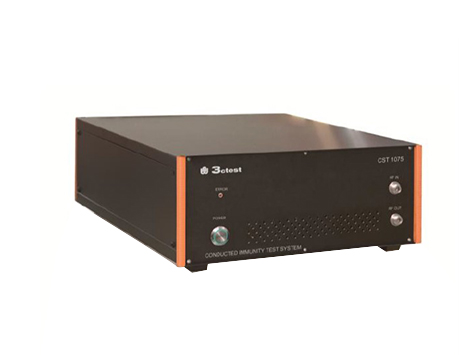

CST 1075 RF-conduction anti-interference test system
The CST 1075 RF transmission immunity test system adopts an integrated design, with built-in integrated signal generator, RF power amplifier, function signal generator, directional coupler and RF power meter.Each device can be used independently, with an optional external power amplifier.Computer control, fully automatic calibration and testing, during testing, output power monitoring

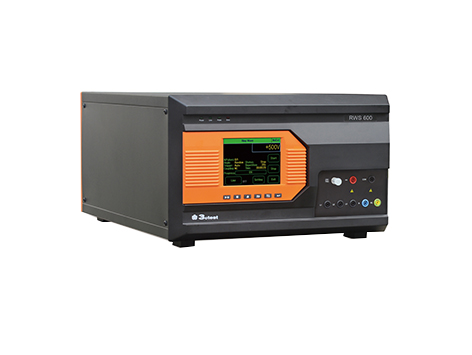

RWS 600 Ring Wave Simulator
Ring waves are caused by switching power and control line switches or by lightning strikes and appear on the terminals of the equipment. Ring waves can affect the reliable operation of equipment and systems. The RWS 600 Ring Wave Simulator is used to evaluate the performance of electrical and electronic equipment, installations or systems when subjected to ring waves. The product meets the requirements of the IEC 61000-4-12 standard.

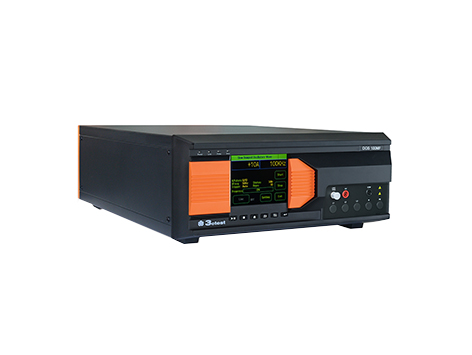

DOS 100MF Damped Oscillating Wave Magnetic Field Simulator
The DOS 100MF damped oscillating wave magnetic field is generated by the isolation knife switch and the high-voltage busbar, which can test the ability of the equipment to resist the oscillating magnetic field under operating conditions. DOS 100MF damped oscillatory wave magnetic field simulator can complete the slow damped oscillatory wave magnetic field test required by the latest standards such as IEC 61000-4-10 and GB/T17626.10.

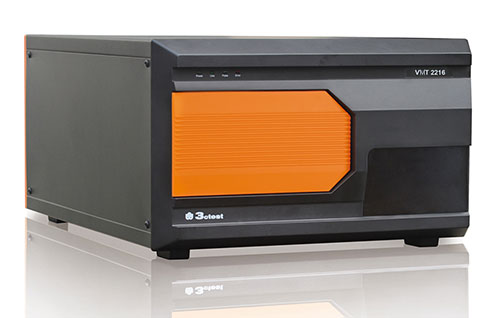

VMT-2216SV Voltage Change / Power Frequency Magnetic Field
VVT / VMT / MFT series accessories and CCS and other hosts can form a temporary voltage drop, short-time interruption, voltage change disturbance resistance test system for automatic test.The formed test system is communicate via Ethernet bus and controlled by EMSLab software.

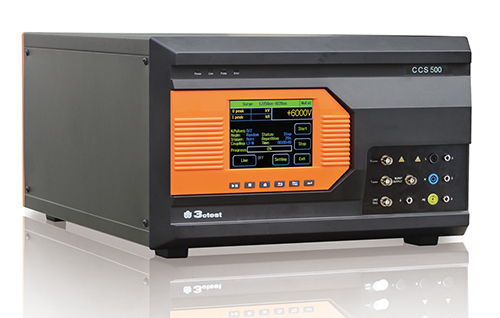

CCS 500 combined immunity tester
CCS 500 is an intelligent multi-function combined immunity tester, which can meet various requirements of international standards and product series standards for transient pulse, surge and voltage drop testing, and the test voltage can reach up to 5KV. CCS series combined immunity tester is the best choice for the fully compatible immunity test scheme. It not only meets the immunity test requirements of EU CE certification and CCC certification for single-phase equipment under test, but also has built-in automatic single-phase coupling/decoupling. It can also perform three-phase five-wire DUT testing through an automatically controlled external coupling/decoupling network (up to 100A).
